Product Details
Place of Origin: Henan, China
Brand Name: ZENGTUO
Payment & Shipping Terms
Minimum Order Quantity: 200 square meters
Price: $15.90/square meters 200-499 square meters
Supply Ability: 4000 Ton/Tons per Month
After-sale Service: |
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection |
Project Solution Capability: |
Graphic Design, 3D Model Design, Total Solution For Projects |
Surface Material: |
Galvanized Steel |
Core Material: |
PU Polyurethane |
Width: |
1000mm |
Structure: |
PPGI + Polyurethane +PPGI |
Fireproof: |
B1 Grade |
Color: |
White |
MOQ: |
200Square Meter |
After-sale Service: |
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection |
Project Solution Capability: |
Graphic Design, 3D Model Design, Total Solution For Projects |
Surface Material: |
Galvanized Steel |
Core Material: |
PU Polyurethane |
Width: |
1000mm |
Structure: |
PPGI + Polyurethane +PPGI |
Fireproof: |
B1 Grade |
Color: |
White |
MOQ: |
200Square Meter |

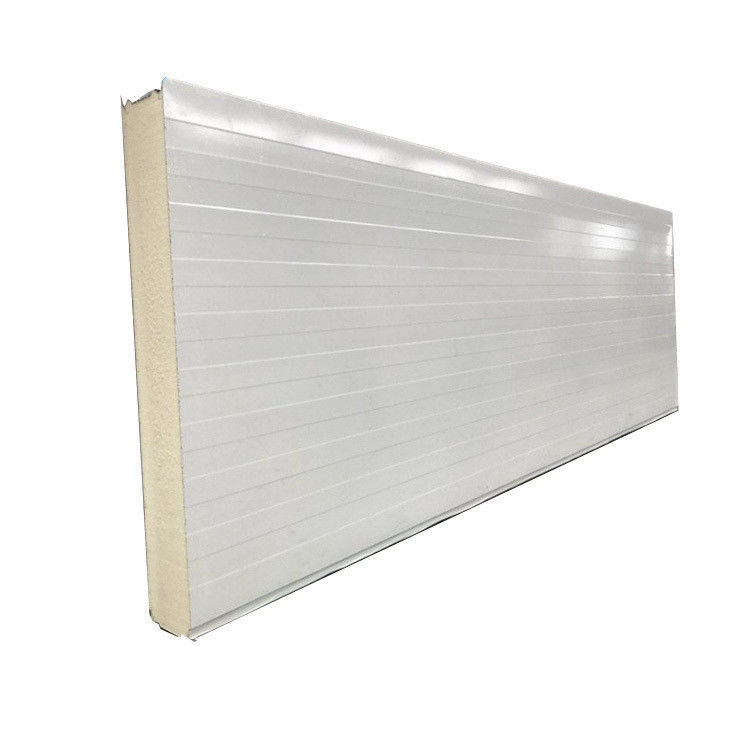

Features
It has the characteristics of fire prevention, thermal insulation, waterproof, sound insulation, etc., which brings high quality appearance effect to the building, and is currently the world's most forward-looking energy-saving thermal insulation, green environmental protection, and ideal building board for artistic buildi.
Polyurethane wall panel adopts dark nail type connection surface without exposed screws, so that the building has a beautiful appearance.
The high flexural bearing capacity of the polyurethane wall panel makes the wall have better mechanical properties and thermal insulation properties, while reducing the need for auxiliary steel structure.
specification
The specifications of our factory's polyurethane sandwich board, the bond strength of polyurethane sandwich board is not less than 0.09MPa, the combustion performance of the sandwich board reaches B1 level, and the bending capacity of the sandwich board is not less than 0.5Kn/m2 when the deflection of the sandwich board is Lo/200 (Lo is the distance between the supports). The effective width of the polyurethane sandwich plate is usually 1000mm, and the length can be customized.
|
Effective width |
1120(mm)
|
|
Length |
According to customer's request, less than 11.8m.
|
|
Materials |
Polyurethane foam panel,Color steel tile |
|
Structure |
Upper and lower layer: Color steel sheet |
|
Middle: Polystyrene foam board |
|
|
Density |
40-45 kg/m³ |
|
Conventional color |
White, sea blue, red etc. |
|
Life time |
20 years |
|
Performance |
Light weight, heat insulation, water resistant, green and environmental |
|
Usage |
Roof, Wall, Ceiling, Partition
|
|
Polyurethane sandwich panel has good fire resistance Polyurethane sandwich board non-toxic and tasteless Wide range of temperature Waterproof, moisture-proof polyurethane sandwich board beautiful appearance, the overall effect is good, it sets load bearing, heat preservation, fire prevention, waterproof in one, and no two decoration |
|
|
|
