Product Details
Place of Origin: Henan, China
Brand Name: ZENGTUO
Payment & Shipping Terms
Minimum Order Quantity: 300 square meters
Price: $15.00/square meters 300-499 square meters
Supply Ability: 4000 Ton/Tons per Month
Load Bearing Capacity: |
Up To 1.5kN/m2 |
Usage: |
Roofing |
Installation Method: |
Interlocking |
Density: |
40kg/m3 |
Width: |
1000mm |
Sound Insulation: |
40dB |
Length: |
Customizable |
Surface Treatment: |
Embossed |
Thickness: |
50mm |
Thermal Conductivity: |
0.022W/mK |
Color: |
White |
Material: |
Polyurethane |
Load Bearing Capacity: |
Up To 1.5kN/m2 |
Usage: |
Roofing |
Installation Method: |
Interlocking |
Density: |
40kg/m3 |
Width: |
1000mm |
Sound Insulation: |
40dB |
Length: |
Customizable |
Surface Treatment: |
Embossed |
Thickness: |
50mm |
Thermal Conductivity: |
0.022W/mK |
Color: |
White |
Material: |
Polyurethane |
advantage
Aside from durability, PU panel roofing provides other great advantages. First, installation is hassle-free. It requires less time and less manpower install. Second, it is flame-retardant. Its efficient thermal insulation keeps the roof from absorbing too much heat. Third, it is economical. Factoring in the first two advantages mentioned, PU panels can save you money as they are easy to install, while it being flame-retardant means less consumption of electricity. Last but not least, it is eco-friendly. All the materials use in a PU panel are recyclable.

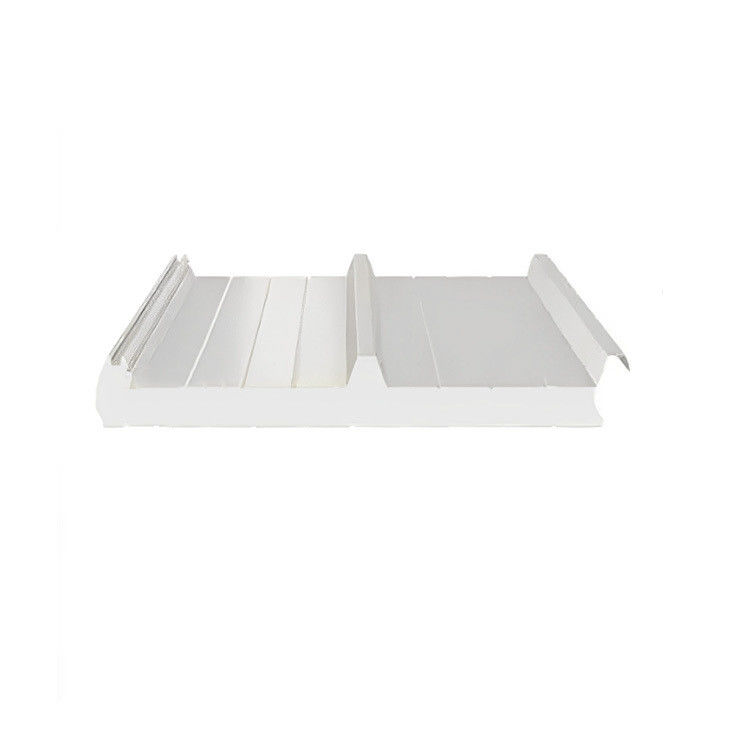

PU Panel roofing or what we call insulated panels. we have Roofing PU Panel ,These panels consist of a rigid foam insulation layer sandwiched between two structural metal skin surfaces. The core consists of Polyurethane and Polyisocyanurate insulated panels that form a strong bond to the outer skin, creating a durable panel.
Set bearing, heat preservation, fire prevention, waterproof in one, and no need for secondary decoration, quick and convenient installation, short construction period, good comprehensive benefits, with good cost-effective advantages, is a widely used plate
Our PU roof panels are structurally superior to traditional wood framing as they are stronger and less susceptible to shifting. They are extremely durable, which is important in roofing as roofs are expected to protect a structure and the people inside it from external threats such as bad weather. Though lightweight, it is important to note that PU panels can be as strong as a rock, making them a Well-Recommended Roofing Material for homes or commercial structures.
Features
Beautiful appearance and economic : it has beautiful appearance,colorful .And it increases material loss ,save time of building and cut off projects express.
Corrosion resistance: aluminum foil can be used instead of color steel plate, to enhance high temperature and corrosion resistance of products.
Reasonable overlap
Quickly build: Polyurethane panel is produced under the high temperature control of the factory and in a constant temperature environment, the quality is stable;
Heat, Sound and water insulated.
specification
Type |
PU sandwich roof panel/polyurethane sandwich roof panel |
Core |
polyurethane |
Density |
40-45kg/m3 |
Surface material |
color steel sheet/aluminum foil |
Steel thickness |
0.3-0.8mm |
Core thickness |
40/50/75/90/100/120/150/200mm |
Length |
1-11.8m |
Effective Width |
1000mm |
Fire Rating |
Great B |
Color |
Any Ral color |
Wave |
four waves |
Advantages |
Lightweight/Fireproof/Waterproof/Easy Install/Insulation |
Surface Appearance |
seamless-wave/slitwidth-wave/concave-wave/Flat/Embossed/Other |
Usage |
It is suitable for the various roofs referring to the large-size factory buildings, storage, exhibition halls, gymnasiums, freezing stores, purification workshops, etc. |
