Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Polyurethane Composite Panels Insulated, Polyurethane Composite Panels 50mm, Insulated Exterior Wall Sandwich Panel


Compressive Strength:	≥200 KPa	Length:	Customized
Surface:	Smooth, Embossed, Printed, Etc.	Thickness:	40-200 Mm
Fire Resistance:	B1, B2, B3	Color:	White, Grey, Blue, Red, Green, Etc.
Thermal Conductivity:	0.018-0.024 W/(m*K)	Density:	38-45kg/m3
Material:	Polyurethane	Flexural Strength:	≥160 KPa

Compressive Strength:	≥200 KPa
Length:	Customized
Surface:	Smooth, Embossed, Printed, Etc.
Thickness:	40-200 Mm
Fire Resistance:	B1, B2, B3
Color:	White, Grey, Blue, Red, Green, Etc.
Thermal Conductivity:	0.018-0.024 W/(m*K)
Density:	38-45kg/m3
Material:	Polyurethane
Flexural Strength:	≥160 KPa

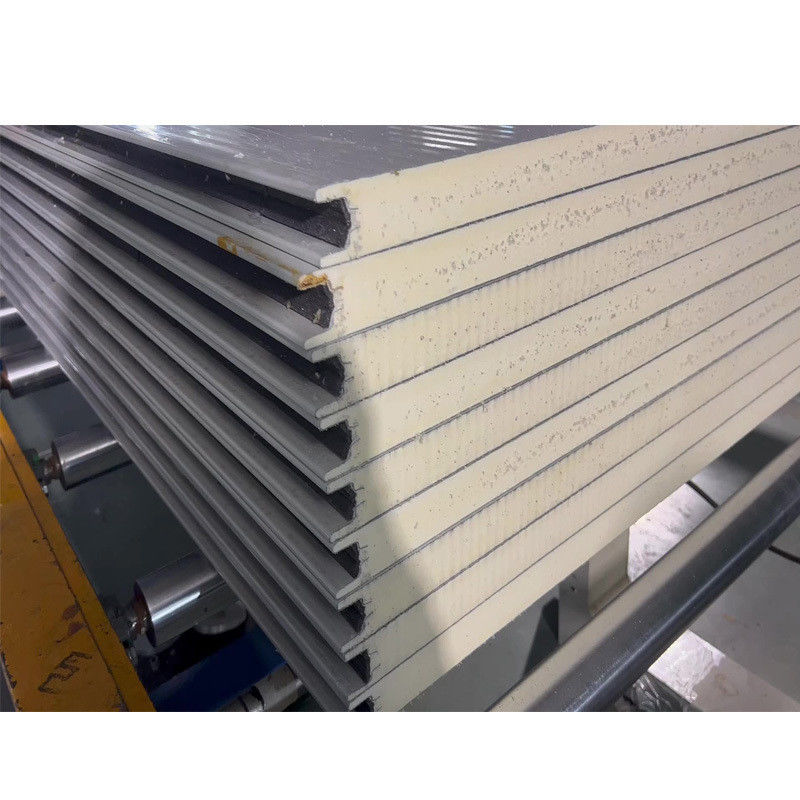

Customized Polyurethane Composite Panels 50mm Insulated Exterior Wall Sandwich Panel

peculiarity

Heat and sound insulation. Temperature suitable for PU ranges from -200 centigrade to 150 centigrade.

Light weight enough to reduce building expense.

The high flexural bearing capacity of the polyurethane wall panel makes the wall have better mechanical properties and thermal insulation properties, while reducing the need for auxiliary steel structure.

Thermal insulation: Polyurethane foam has good thermal insulation properties, which can effectively reduce energy loss and improve the energy efficiency of buildings.

advantage

SUPER FLAME RETARDATION

The coefficient of thermal conductivity is 0.023w/(m•k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits.

Great flame retardation and the complete removal of cold bridges (during the rafter installation), do help reduce heating bills.

EASY AND QUICK INSTALLATION

Compared with traditional thermal insulation methods,our use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.

.Good strength parameters. Roof panels can withstand the load of snow and wind depending on their thickness and climatic zone, with supports’ span of more than 3 m. In most cases, wall panels can be used with supports’ span of up to 6 m.This results in real savings in terms of the supporting structure, and thus overall costs of the entire building.

Fire resistance properties according to the needs. Using proper type of core can ensure the fire resistance. This enables protection of escape routes and separation of fire compartments from each other.

specification

Effective width	1000(mm)
Length	According to customer's request, less than 11.8m.
Materials	Polyurethane foam panel,Color steel tile
Structure	Upper and lower layer: Color steel sheet
Structure	Middle: Polystyrene foam board
Density	40-45 kg/m³
Conventional color	White, sea blue, red etc.
Life time	More than 20 Years
Performance	Light weight, heat insulation, water resistant, green and environmental
Usage	Roof, Wall, Ceiling, Partition
